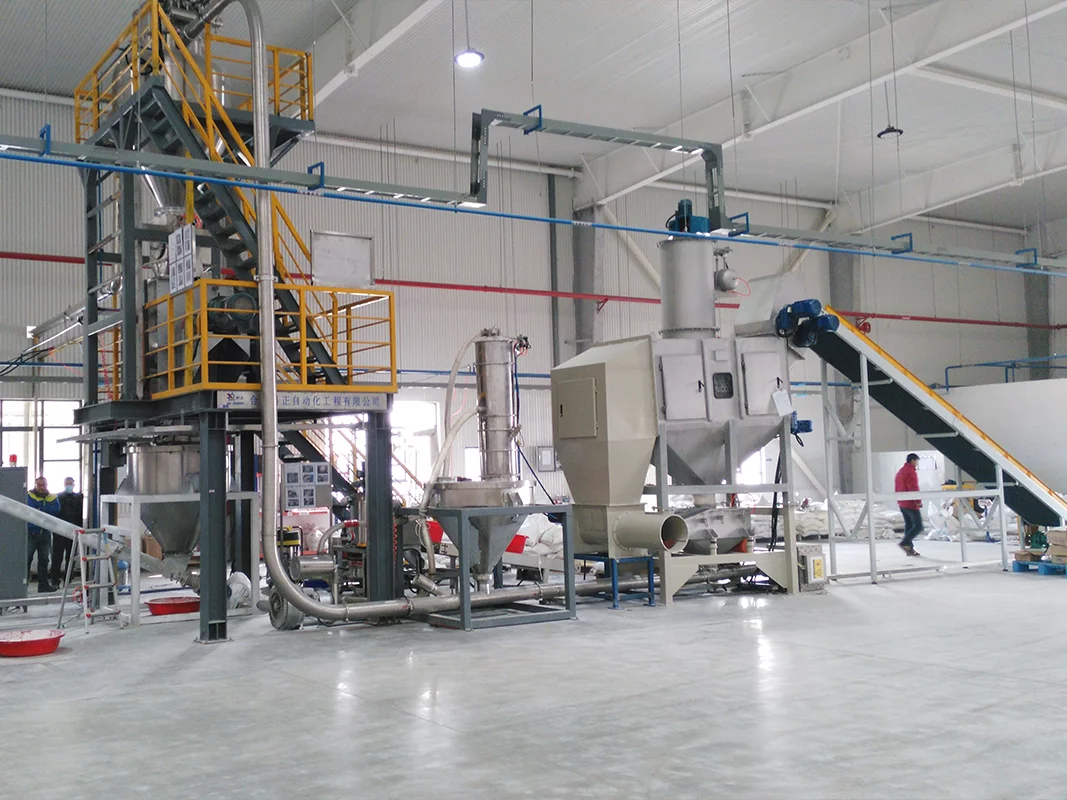

Automated batching and packaging system production line

The automated batching and packaging system production line is usually composed of an automatic batching electrical control system and controlled feeding devices (equipment), packaging systems, and monitoring systems. Compared with manual ingredients, it can not only save a lot of labor costs, labor intensity, and reduce environmental harm to human health in production, but also improve the stability, accuracy, and efficiency of end products, bringing huge benefits to production enterprises. Automated ingredient and packaging system production lines are widely used in various industries such as glass, mineral products, pharmaceutical feed, building materials, environmentally friendly new materials, new energy, fertilizers, and food. In the production of modern refractory materials, high-end, intelligent, and automated refractory material production lines are an inevitable requirement for the high-quality development of the industry. Traditional refractory material production lines can no longer meet the high-precision production needs of the rapidly developing refractory material industry. As one of our many clients, Perotec (Chuzhou) New Materials Co., Ltd. has a project name: Refractory Material Mixing and Packaging Production Line.

• – Material bulk density: 1.2t/㎡,
• – Mixing and packaging capacity: 2t/h，
• – Packaging specification: 1-2kg (commonly 2kg specification)
• – Packaging accuracy:<0.5%,
• – Mixing requirement: 700kg/batch, specific mixing time can be freely set in the control system
• – Power supply: AC · 380/220V ± 7%, three-phase five wire system
• – Frequency: 50Hz ± 1%
• – Instrument grounding:<452,
• – Noise: Double screw belt mixer (within 3 meters)<less than 80 decibels, vacuum material machine (3 meters)<less than 80 decibels.

Material: SUS304 stainless steel for the main equipment.
